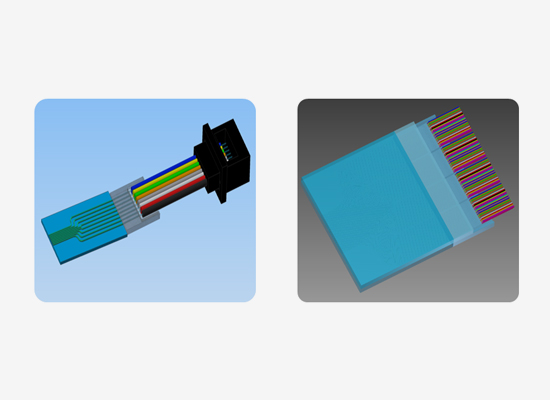

Core Pitch Conversion (CPC) PLC Chip & Fiber Array
홈 > Product > Data Center Solutions > Core Pitch Conversion (CPC) PLC Chip & Fiber Array
Core Pitch Conversion (CPC)
PLC Chip & Fiber Array
- Features
-
8ch 16ch, ▪▪▪ 200ch, customer request are available
- Customized high channel product is also available
- Core pitch can be changed - High accuracy core pitch conversion
- Applications
- Conversion to a core pitch which is suitable for coupling with PIC Chip
- Optical Transceivers
- Co-packaged Optics
Overview
CPC is a fiber array equipped with a core pitch conversion function, enabling the conversion of core pitch to match silicon photonics chips. By utilizing advanced Planar Lightwave Circuit (PLC) technology, it achieves high-precision core pitch conversion in a compact PLC chip. With the proliferation of cloud computing and the commercialization of AI, there is an increasing demand for higher-speed optical communication, and the integration of silicon photonics chips is progressing. This product is an optical component suitable for efficiently coupling these compact silicon chips with optical fibers.
| Parameter | Unit | 8ch, 16ch, … , 64ch |
|---|---|---|
| Insertion Loss | ≤ dB | 0.3 |
| Polarization Dependent Loss | ≤ dB | 0.15 |
| Return Loss | ≥ dB | 50 |
| Operation Wavelength | nm | 1310, 1550 |
| Angle of FA side | Degree | 90 |
| Core Pitch Conversion | um |
250/125 um → 50um, 40um 250 um → 125um customized |
| Fiber pigtail option | - | SMF or PMF pigtailed, customized |
| Operating Temperature | ℃ | -5 ~+70 |
| Storage Temperature | ℃ | -40 ~+85 |
