MCF FIFO (Fan-In/Fan-Out) Module
홈 > Product > Data Center Solutions > MCF FIFO (Fan-In/Fan-Out) Module
MCF FIFO (Fan-In/Fan-Out) Module
- Features
- Supports LC/MT/MPO pigtail for seamless network integration.
- Customized packaging available to meet specific architectural needs.
- Applications

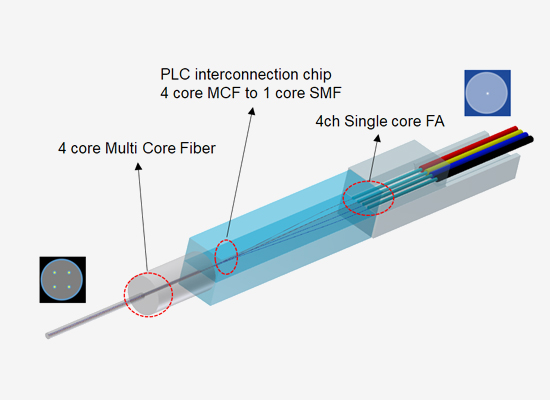

- Interconnection between single-core fiber and multi-core fiber
- Telecom Central Office Upgrades
- Silicon Photonics Intergration.
- Optimized for Data Center Interconnects (DCI) to reduce fiber count.
| Parameter | Unit | 1ch | 3ch |
|---|---|---|---|
| Operation Wavelength | nm | 1310, 1550, 1625 | |
| Multicore Fiber Spacing (Input) | um | 40 | |
| Insertion Loss (without connector) |
dB | 0.5 (P) / 0.7 (A) / 1.0 (S) | 0.8 (P) / 1.0 (A) |
| Return Loss | ≥ dB | 55 | |
| Cross Talk | ≥ dB | 45 | |
| Single mode fiber type | um | G.657 A1 | |
| Pigtails | - | SMF 1 – 10 meter long inside, 900um furcation tube | |
| Operating Temperatures | ℃ | -5~+70 | |
| Storage Temperatures | ℃ | -40~+85 | |
