Spot Size Conversion (SSC)
PLC Chip & Fiber Array
- Features
- MFD of Core waveguide can be changed according to customer requirements
(e.g., 4um → >8um) - 8ch 16ch, ▪▪▪ 200ch, customer request are available
- High accuracy In/Out beam spot size conversion
- Customized packaging is available
- Applications
- Conversion to mode size which is suitable for coupling with PIC Chip
- Optical Transceivers
- Co-packaged Optics
Overview

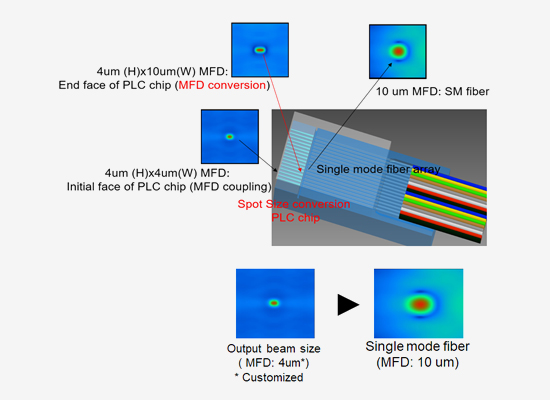

SSC(Spot Size Converter) is a fiber array equipped with a output beam spot size conversion function, enabling the conversion of MFD to match PIC chips. By utilizing advanced Planar Lightwave Circuit (PLC) technology, it achieves high-precision MFD matching in a compact PLC chip with ease.
| Parameter | Unit | 8ch | 64ch |
|---|---|---|---|
| Insertion Loss | ≤ dB | 0.3 | 0.5 |
| Polarization Dependent Loss | ≤ dB | 0.15 | 0.2 |
| Return Loss | ≥ dB | 50 | |
| Operation Wavelength | nm | 1310, 1550 | |
| Angle of FA side | Degree | 90 | |
| MFD Conversion | um | 6.4 um → 10 um, customized | |
| Fiber pigtail option | - | SMF or PMF pigtailed, customized | |
| Operating Temperature | ℃ | -5 ~+70 | |
| Storage Temperature | ℃ | -40 ~+85 | |
