PLC CWDM & LAN-WDM Chip
Contact UsOverview

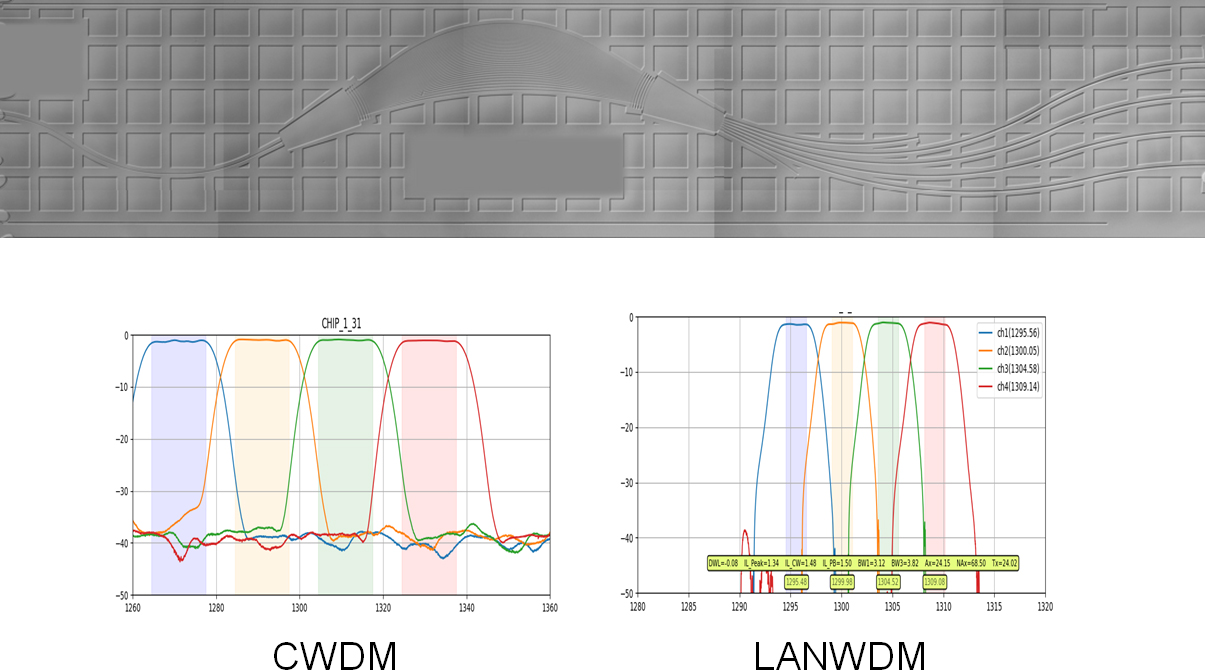

High-performance Multiplexing/Demultiplexing chips based on PLC technology for high-speed optical transceivers.
| Parameter | Unit | CWDM | LWDM |
|---|---|---|---|
| CH # | - | 4 | 4 |
| Insertion Loss | ≤ dB | 2 | 2 |
| Center Wavelength | nm | 1271, 1291, 1311, 1331 | 1295.56, 1300.05, 1304.58, 1309.14 |
| 1dB Bandwidth | ≥ nm | 13 | 3 |
| Adj. Ch Isolation | ≥ dB | 20 | 20 |
| Polarization Dependent Loss | ≤ dB | 0.5 | 0.5 |
| Chip Dimension | L x W x H [mm] |
9.6 x 1.6 x 1 | 10.5 x 2.5 x 1 |
